ID # 13489
SPECIFICATIONS:
Workpiece Diameter………………………………………..1.5 – 100 mm
Workpiece Length – Maximum………………………………………300 mm
Cutting Length – Maximum………………………………………..180 mm
Cutter Diameter – Maximum………………………………………..70 mm
Setting Angle……………………………………………..+30 Degrees
Clamping System……………………………………………W25/Carrier
Milling Motor………………………………………………..P=1.1 kW
Cutting Speed………………………………………….500 – 6,000 RPM
Hydraulic Aggregate……………………………………………0.37 kW
Coolant System……………………………………………..60 in/min.
X-Axis=Longitudinal – Maximum……………………………………200 mm
Y-Axis=Plunging – Maximum………………………………………..70 mm
X-Axis=Workpiece Spindle
X-Axis Rapid Advance………………………………………….6 m/min.
Y-Axis Rapid Advance………………………………………….6 m/min.
Z-Axis Rapid Advance…………………………………………50 m/min.
EQUIPPED WITH:

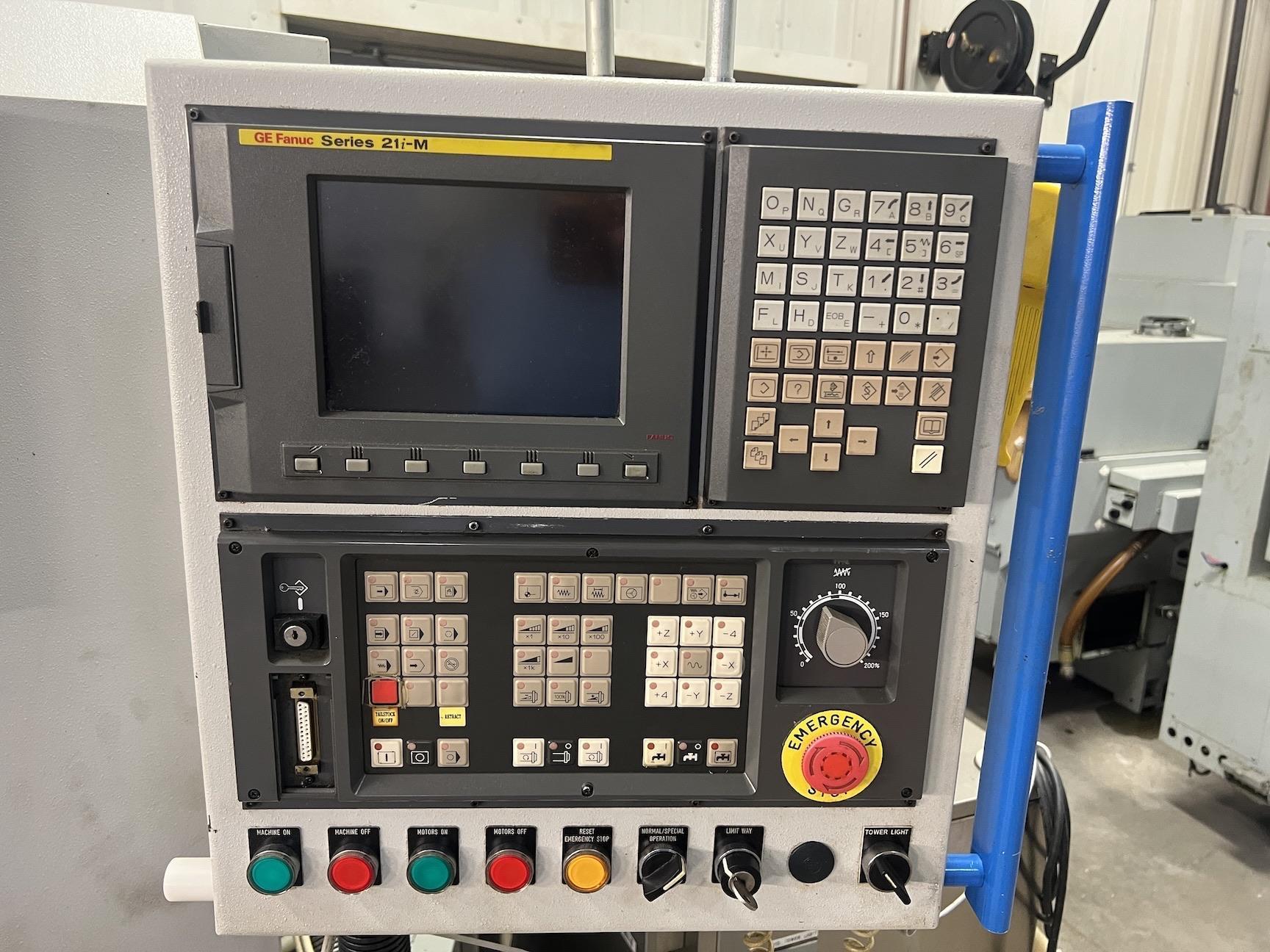

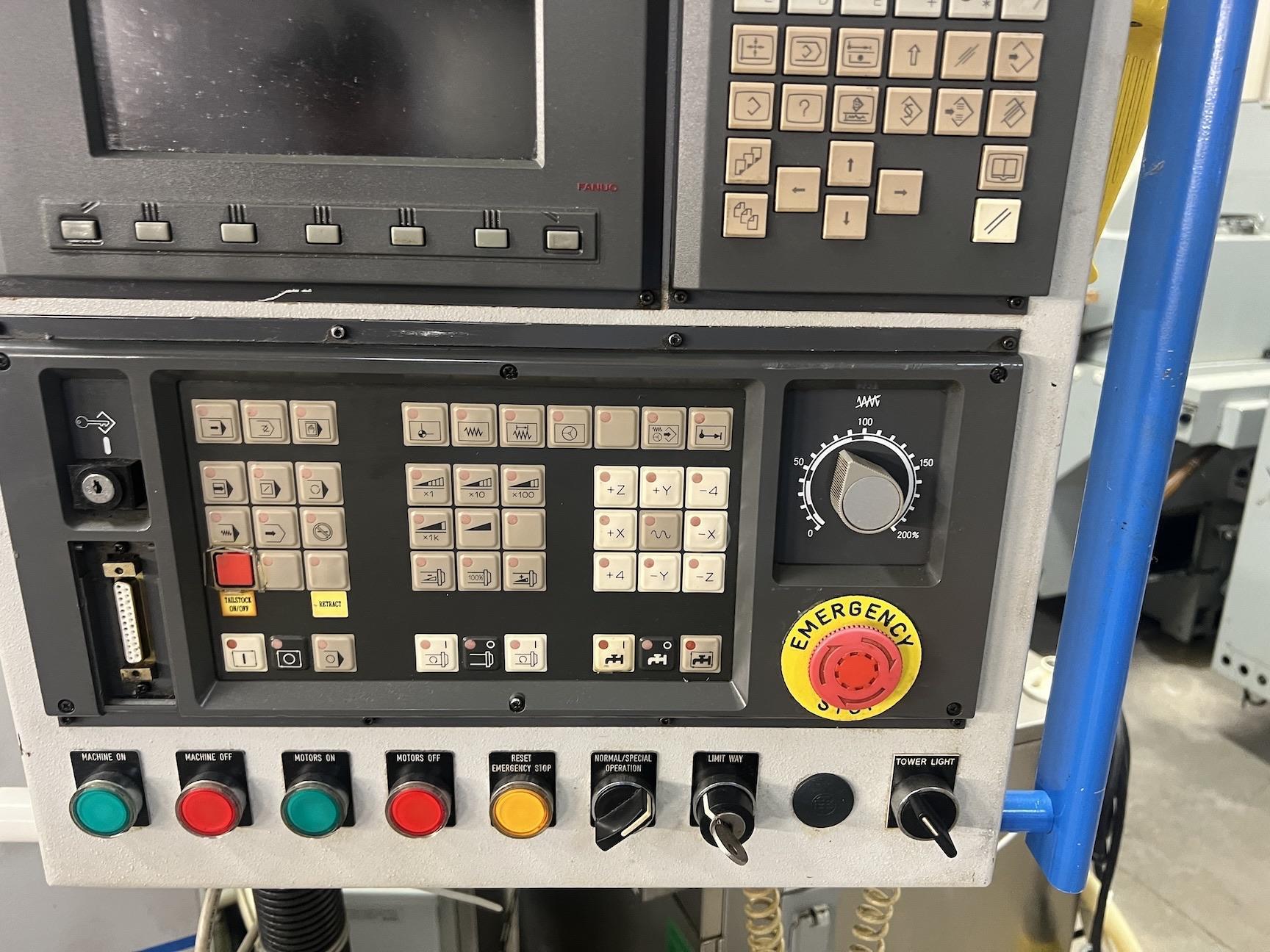

Fanuc 21i-M 4-Axis CNC Control
Miscellaneous Tooling
Foot Pedal
Books and Manuals
*Preliminary Specifications Subject to Verification
