1 1/4" National Model 1250 Five Die Cold Former

ID # 13519

1 1/4" National Model 1250 Five Die Cold Former

Brand
NATIONAL MACHINERY

Model
1250

Type
Parts Formers, 5 Die

Stock #
13519

Condition
Used

Year
1975

Request a Quote

Specifications

No. of Dies	5
Maximum Cutoff Diameter	33.5mm
Cutoff Length	15.8-250.0mm
Minimum Kickout Length	45mm
Maximum Kickout Length	250mm
Boltmaker Type Transfer	65SPM
Maximum Available Forming Load	550 Metric Tons
TKO Stations	1-5
Timed Punch Knock Out	64mm
Die Center Distance	190.5mm
Shut Height	267
Ram Stroke	330

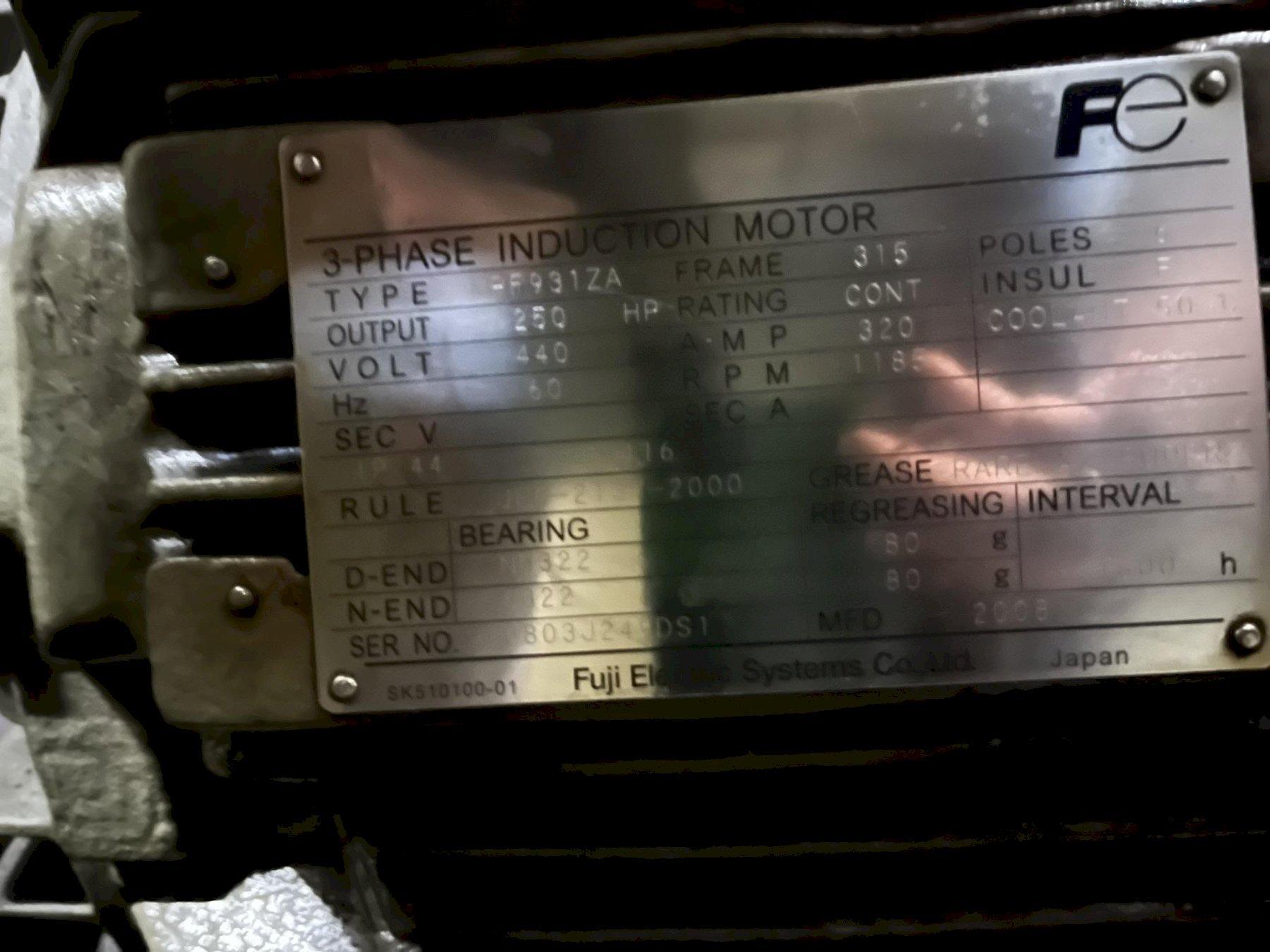

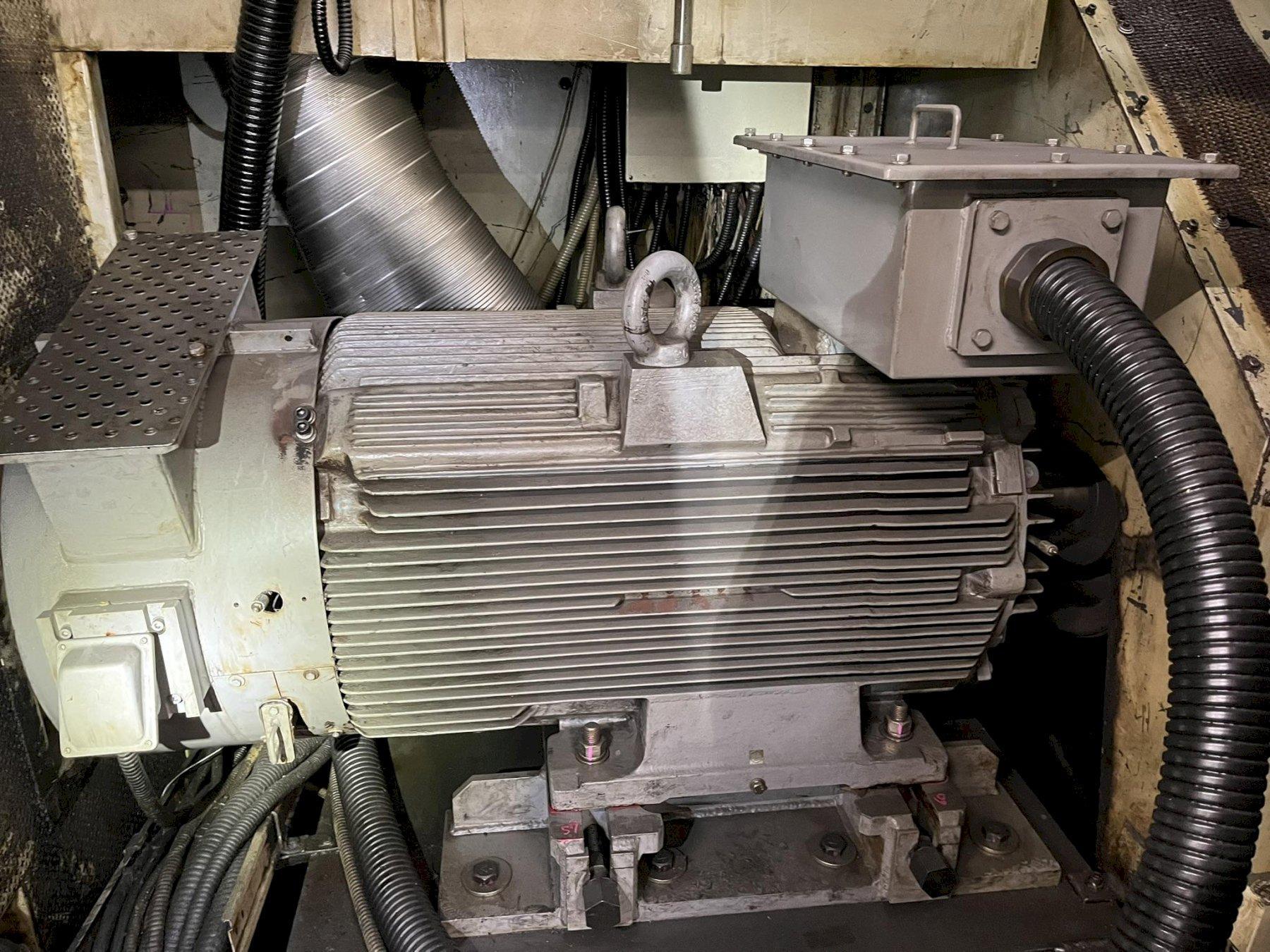

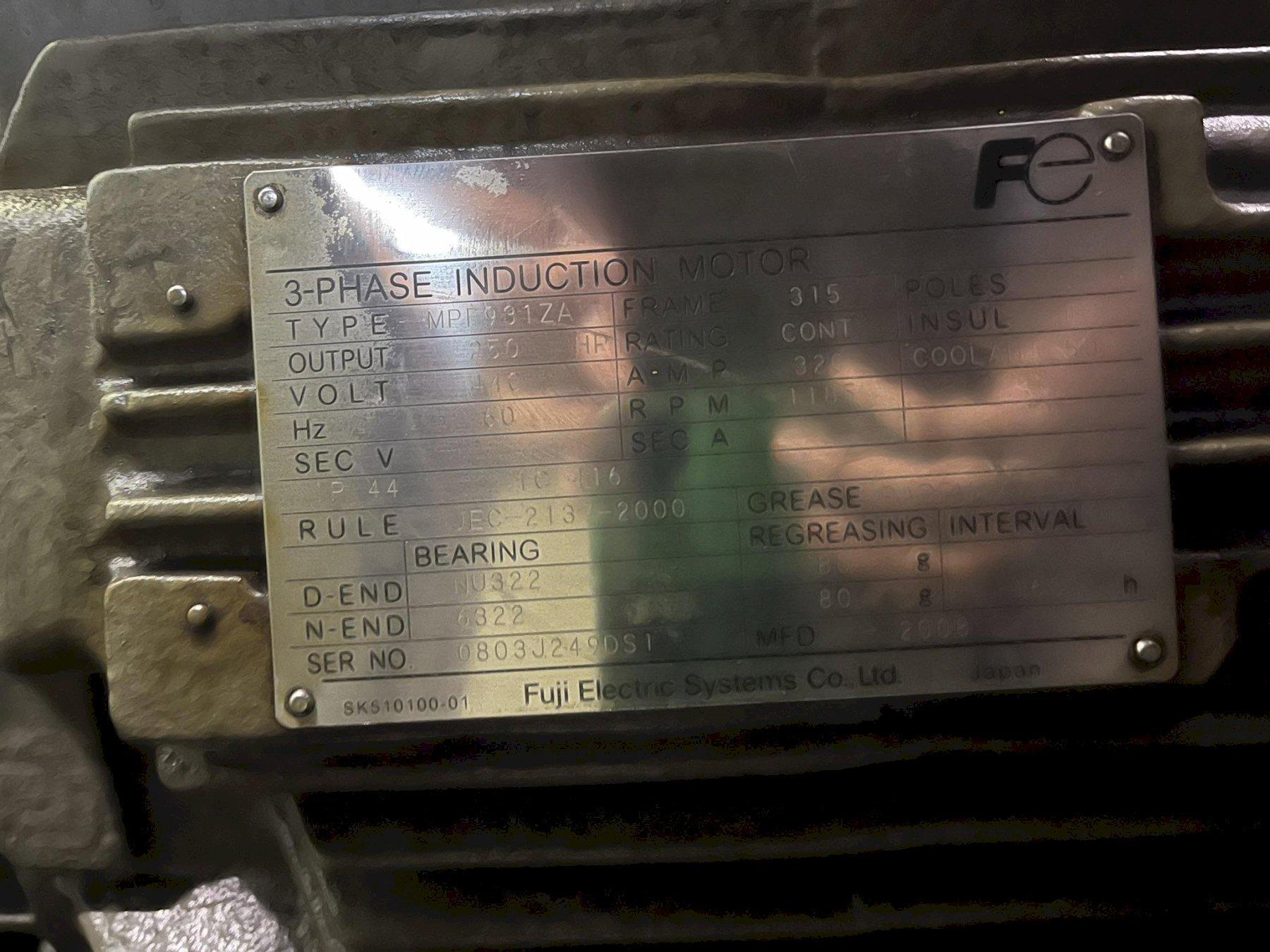

Motor	180 Kw
Machine Weight	100 Tons

Equipped With

Machine was making Steering Parts

Transfer Specifications:
Boltmaker type transfer

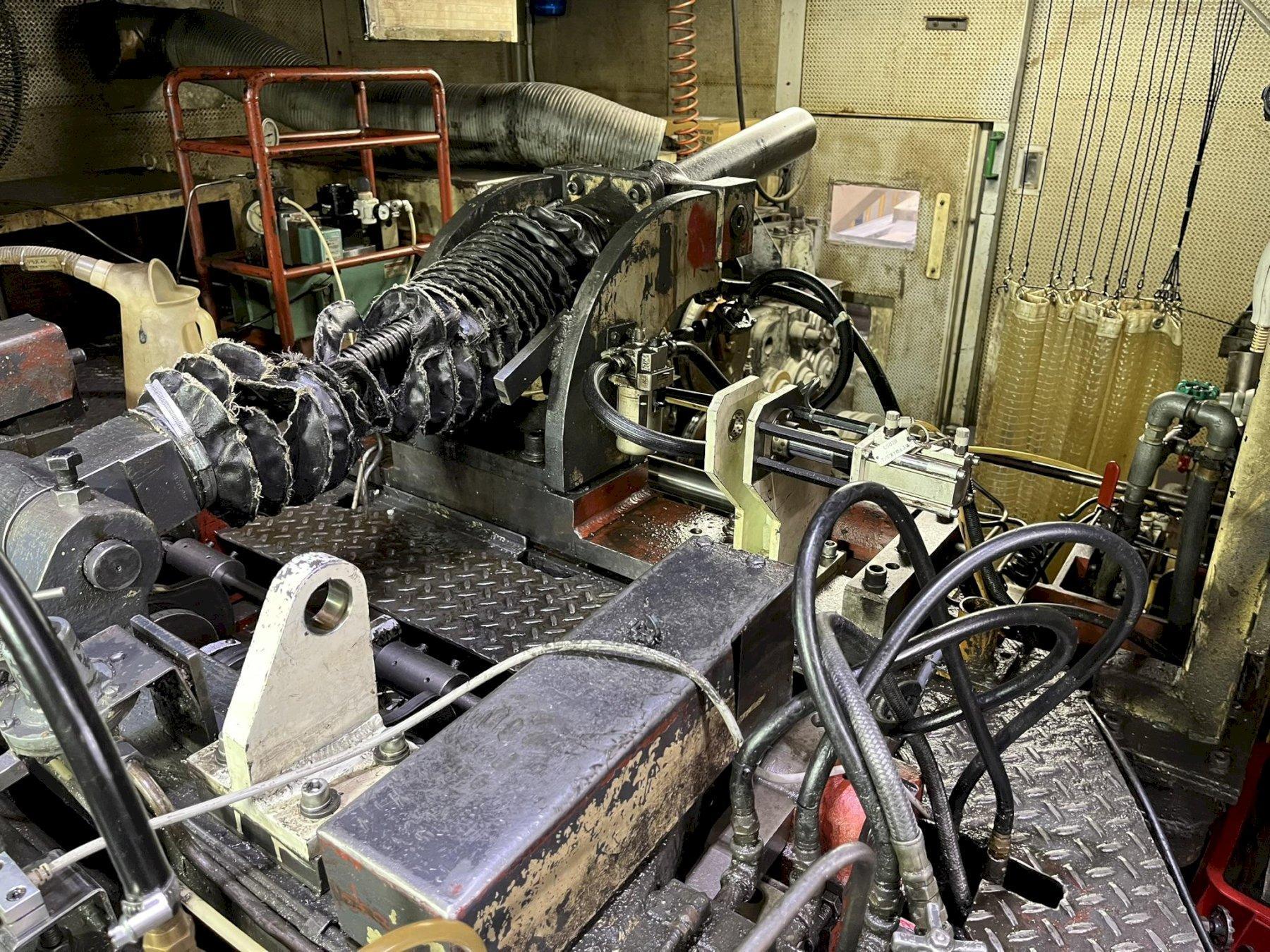

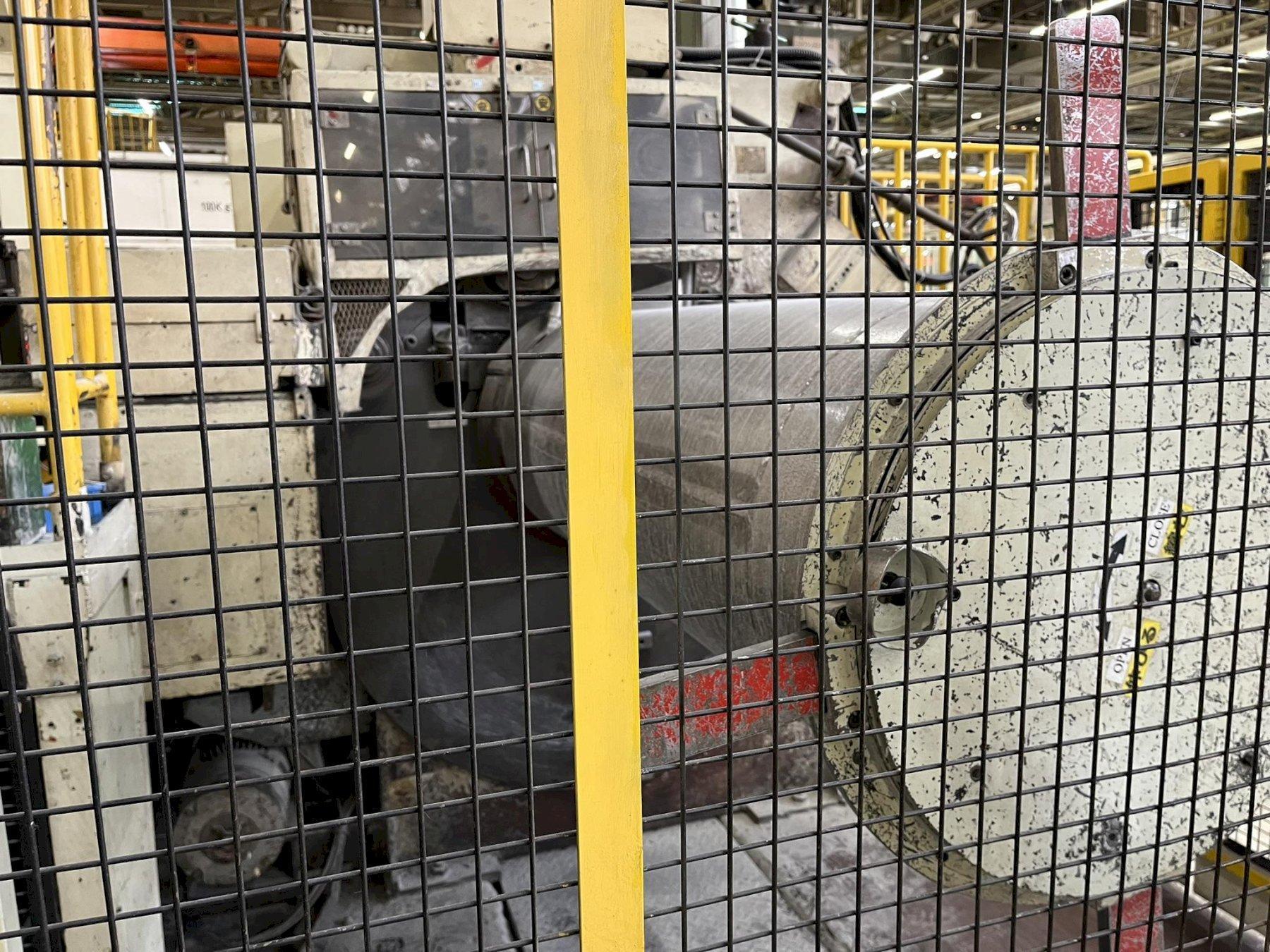

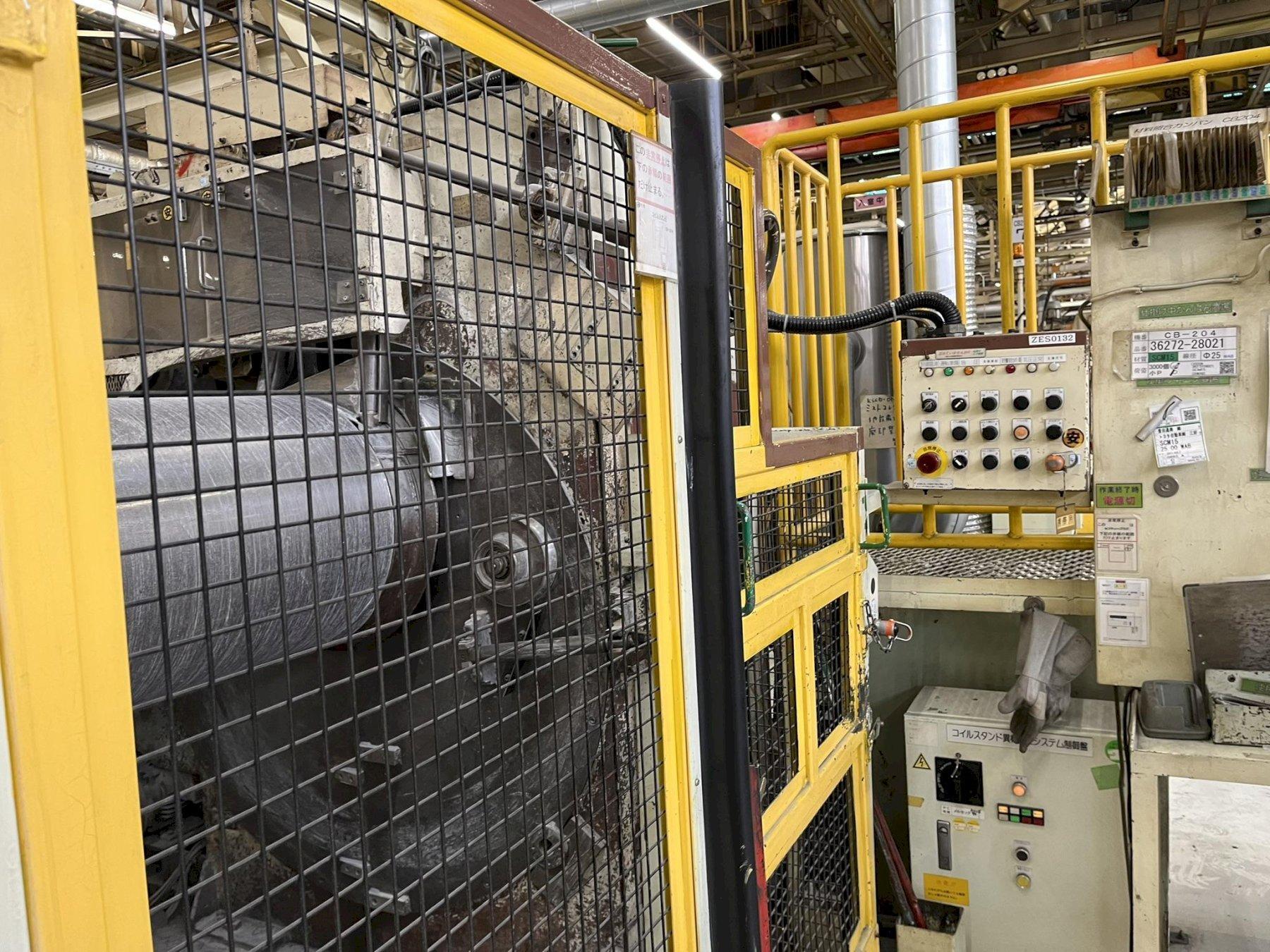

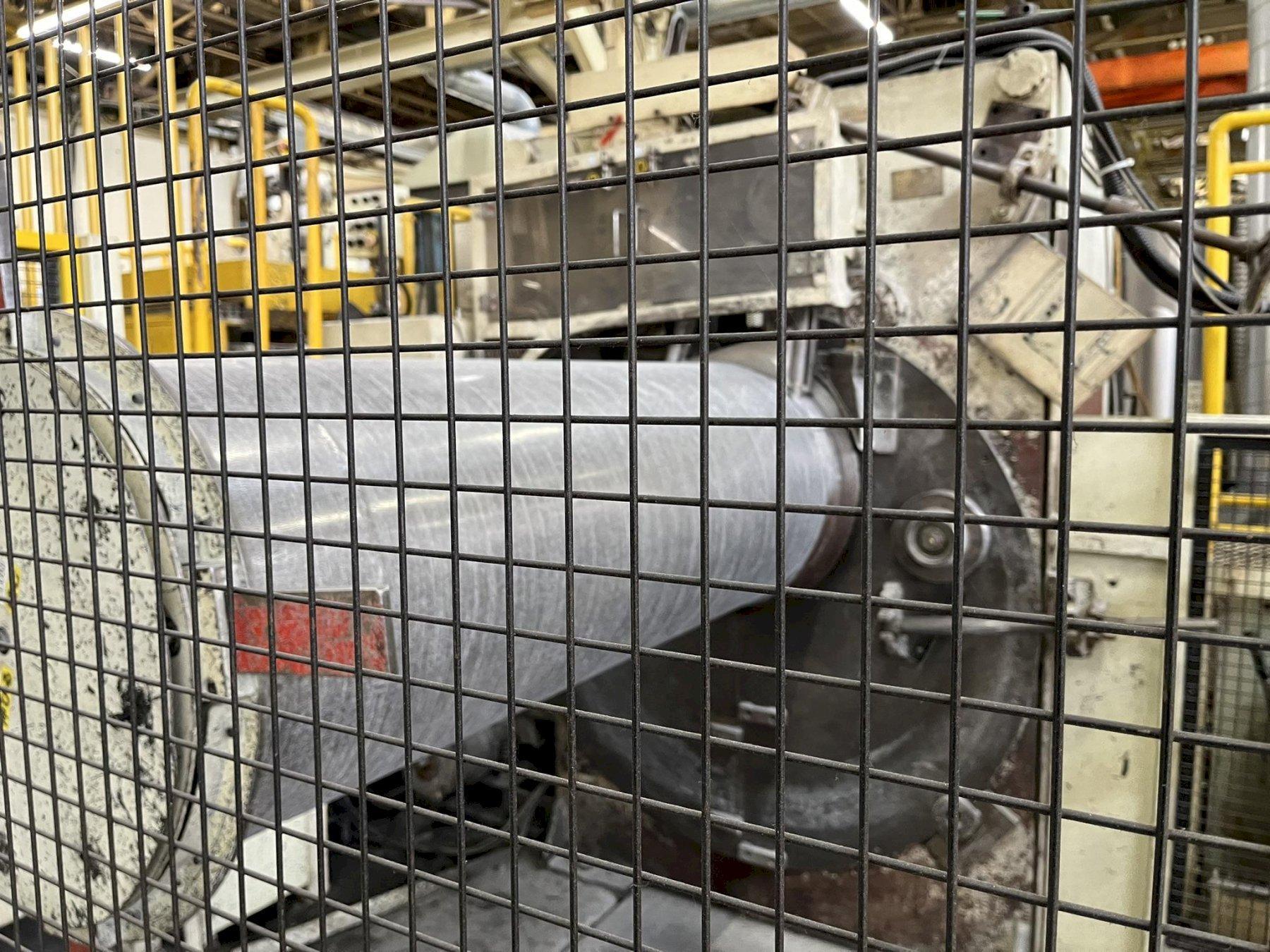

Equipped with a large capacity Wire Payoff Turntable and Inline Wire Straightener.

This was the last 1250 Cold Former National made prior to the FORMAX FX86. There are many option on this machine that you will not see on other Parts Formers like:

Total Punch and Die Block removal for change over
Motorized Adjustments for Die Kickout
